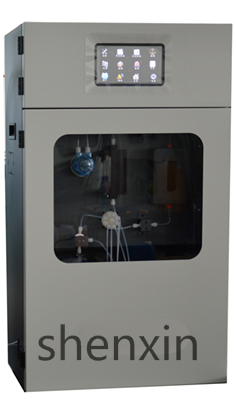

SX-PO4-1000Online monitoring instrument of phosphate is Shandong believes that Energy Conservation and Environmental Protection Technology Co., Ltd. is based on national standardsGb11893-89, Activation of water phosphates developed by molybdenonate lighting method.
1、SX-PO4-1000Basic principle
In an acidic medium, the positive phosphate and ammonium molybdenonate react. After the production of phosphorus molybdenum hyperthyroidic acid under the existence of salt salts, it is immediately restored by ascorbic acid, which generates blue complex.

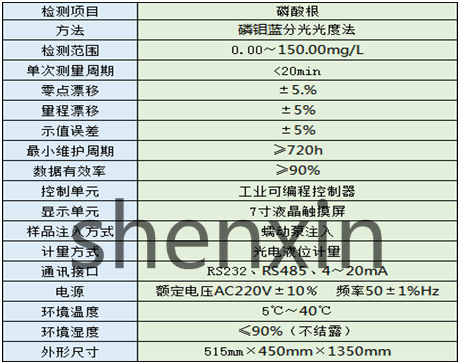

2,SX-PO4-1000Performance indicators of online monitoring device equipment
2,SX-PO4-1000 type of phosphate online monitorFeatures
● Phosphorus -molybdenum blue lighting method, high measurement accuracy
● Automatic calibration, automatic diagnosis and monitoring
● Compact design
● Low maintenance and low reagent consumption
● Continuous measurement or interval measurement (5 ~ 360min)
● Easy installation and simple operation
● SD Card data storage, Failure record, can 485 interface, 0/4-20 ma Output
4、SX-PO4-1000 type of phosphate online monitorScope
● Boiler water quality, industrial follow -up water, groundwater, urban water supply, pharmaceutical water, food water, college scientific research water quality testing;
